Hotmelt Maschine LABline

Manual production of prototypes and small series

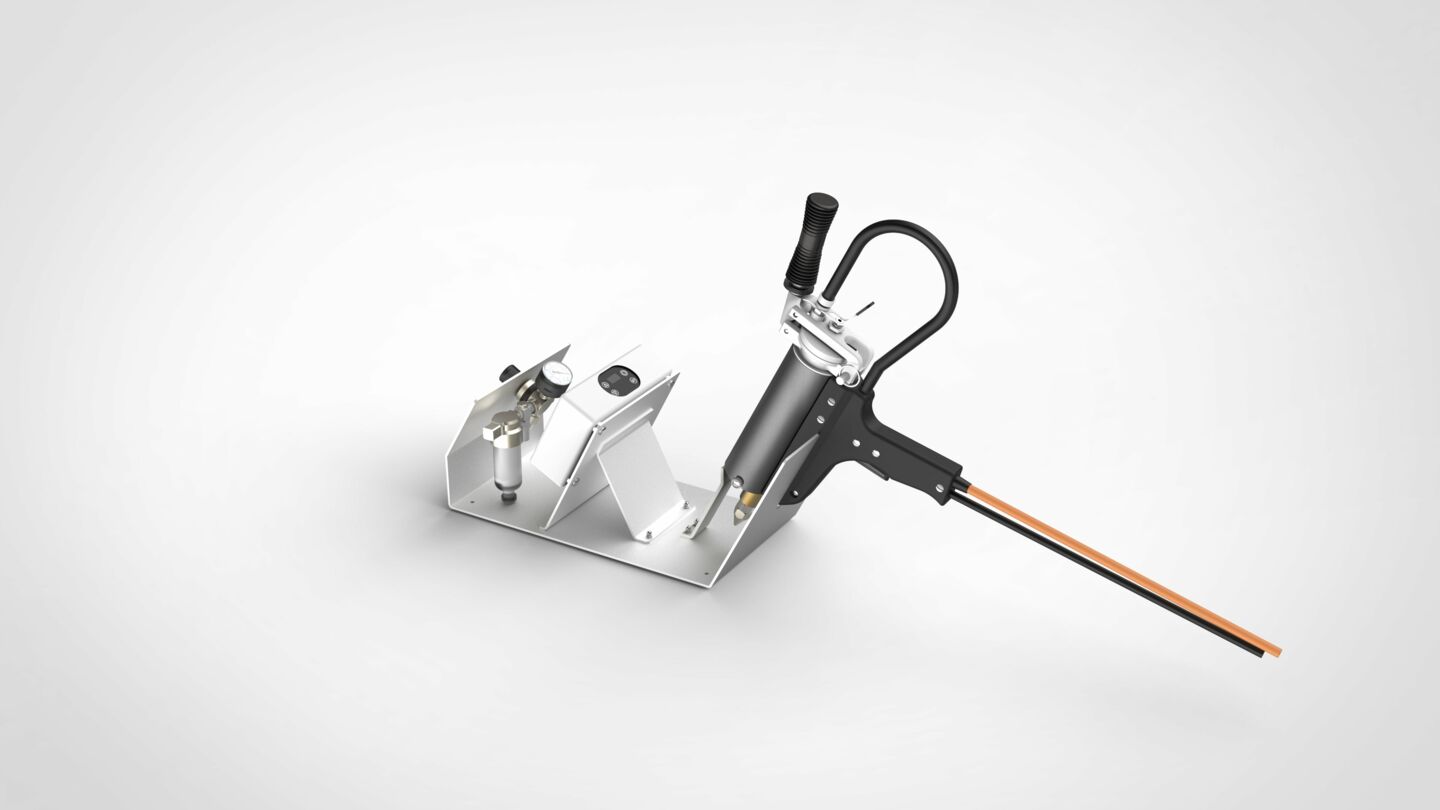

In order to get started with the technology, for prototyping of new projects as well as the production of small series, the LABline offers a selection of small devices, tailored to the requirements of Low Pressure Moulding technology. The basis for this is the manual moulding gun with a 0.2l tank for filling with material granulates.

In order to achieve process stability and reproducibility even with this manual processing, a time control can be connected.

Two different clamping devices are available for convenient handling of sample and pre-series tools.

  • For the production of small series
  • For samples and prototypes
  • Entry-level technological device


Operation temperature: max. 250°C

Mass pressure: max. 0,55 MPa/ 5,5 bar

Power connection: 230V / 50Hz. oder 110V / 50Hz.

Power consumption: 350W

Tank volume: 0,2 l

Melting capacity: ca. 400g/h

Integrated melting tank

Wide range of applications due to different nozzle geometries

Measures: B200 x H460 x T720 mm

LABline equipment

Optional machine accessories

Time control for moulding time

For controlling a fixed moulding time for increased process reliability even with manual moulding.

Clamping device for sample tools

Two pneumatically controlled clamping jaws fix small sample tools for manual moulding.

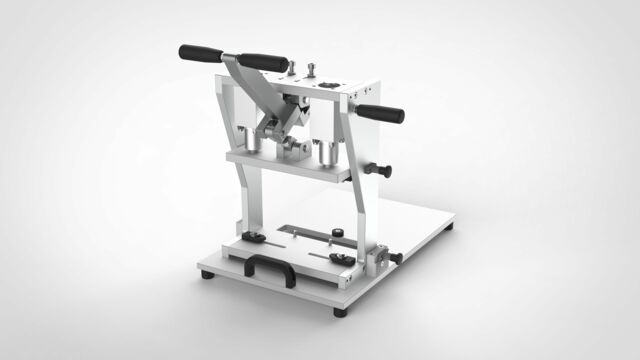

Clamping device for serial tools

The manual toggle lever system enables the processing of series tools with the manual applicator.

Machine configurator

Use our machine configurator to put together your individual Low Pressure Molding LABline machine, tailored to your manufacturing processes.

Low Pressure Molding tools

The decisive factor for the technical implementation of any project is the corresponding moulding tool. Each is individually developed, designed and manufactured for the respective project.

Our experienced designers and project managers are always available to consult you!

Hotmelts for electronic encapsulation

There is the right material for every application. Amongst our hotmelt granulates we also have the right material for special projects and areas of application.

Find out more about the various types of materials.

Virtual LPM Studio

With our OptiMel Studio, we added a digital space to our facilities in 2020.

We are thus just as well positioned for virtual trade fairs and lecture events as we are for individual online seminars and training courses.

In addition, individual consultation appointments can also be organised. For example, you can get to know our machine system in detail, book operator and maintenance training courses or take part in a tool sampling - and all this conveniently from the comfort of your own workplace.
